So,03.07 ,made some detail -Pics of my bike,maybe a guideline for your Mods.



Carbon-Cockpit2.JPG (108220 Byte)This is my Carbon-Cockpit,it's prepared already to put in the std or HRC Instruments + a little bicycle speedometer,also a ignition Switch from Honda MT-8,a ok switch-40 gr!
But enlarge the pic-i don't use a rev-o-meter,why should i:when you're fast ,you've got no Time to watch it .-but i've got a LED Voltmeter-very important.



I'd recommend a fuelpump for FCR,it maybe not totally necessary,but you've got a good feeling or confidence at high Speed recommendable-fuelpump.JPG (143910 Byte)

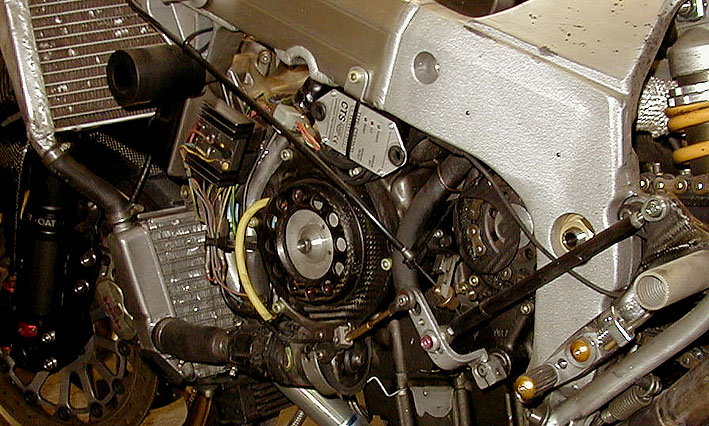

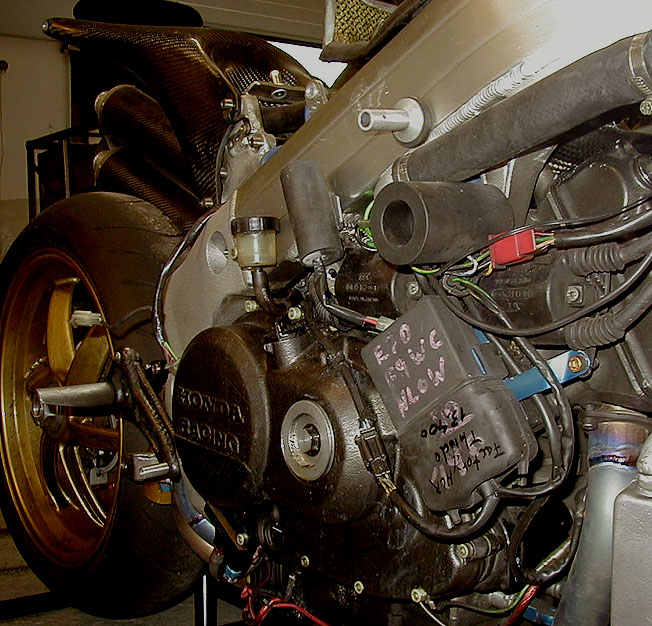

here detail wiring Pics from stripped RC30,what you see left and right is the whole wire harness, i moded or re-moded this wire 5th Times,the last Time it took 10 hours to get rid of 350 gr,but i guess now this full roadusable wire harness is lighter than a HRC-wire.

what you can see(i've done it at the RC51 same)-locate all electronic groups in one Area!

As far as possible.

DurbahnRC30-rightSidedetail.JPG (144155 Byte)                     DurbahnRC30-leftSidedetail.JPG (129610 Byte)





A hint here and a bit hidden Item-highly recommendable:Hawker Batterys-1040gr!

2.5 Ah-no Problem starting-guess 50% of German RC30 Owners use them,the other 50% don't know them.You know-centre of gravity:here you can locate them:

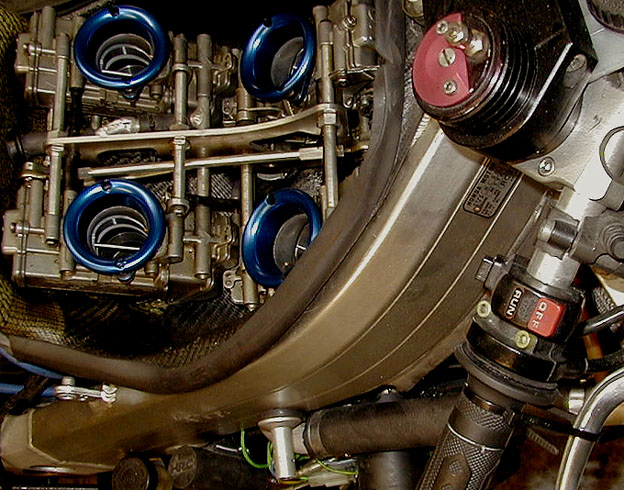

Carb-mounting_trick.JPG (118430 Byte)You still have Problems getting you Carbs on the Motor ?Use a Straps,fix your throttle at max open -therefor straps it round the brakelever,if you've got no FCR you've to lift the Pistons the with your Finger-for a look inside.But you've a good view then for each gasket and you know very fast which one makes you problems.



Get rid of the ugly thermostat -case  :Water_conductiondetails1.JPG (110084 Byte)

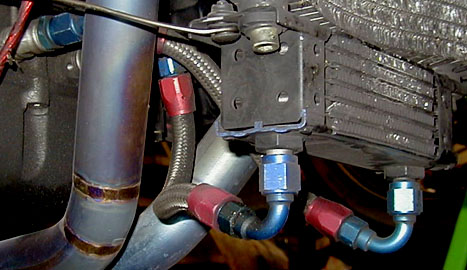

Olicoolerdetail3.JPG (45751 Byte)Some did ask-how to mount a Oilcooler-a detail here:use VFR-F Oilpump,2 inside Motor "F" Oillines,bore14mm inside engine,make a thread M14 x1.5 from the outside-thats it ,then fix your Oilcooler!

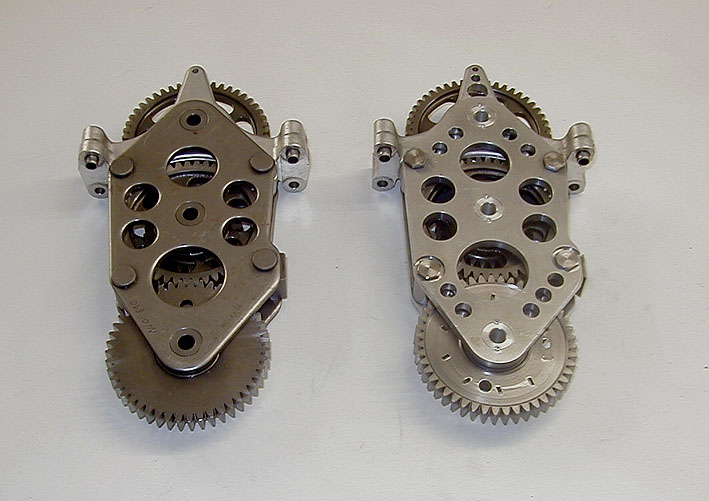

One of them not for Sale,both quietening gears removed:    onenotforsale-seameestreet.JPG (72255 Byte)

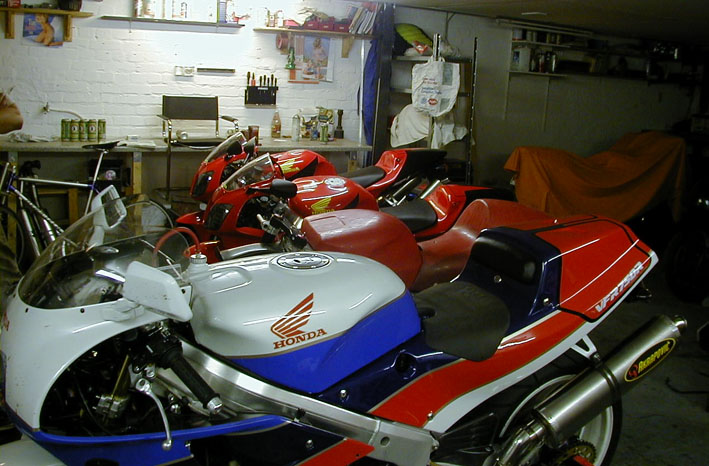

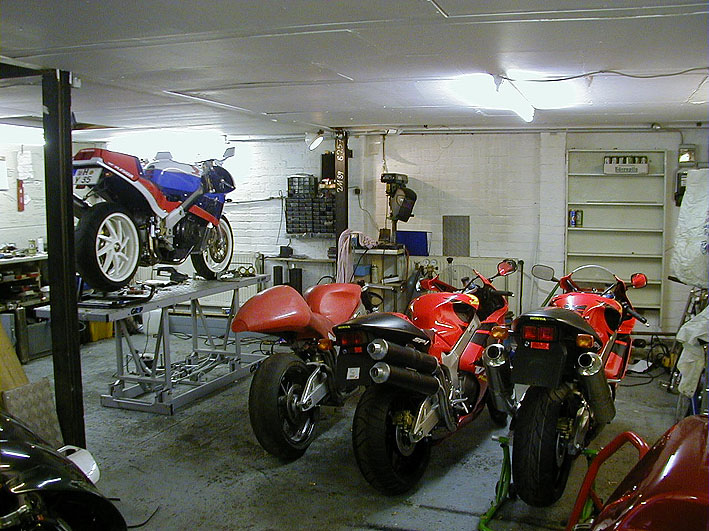

SOMEWORKSHOPIMPRESSIONPICS            Some_workshop_impressions.JPG (99527 Byte)                Some_workshop_impressions3.JPG (141331 Byte)

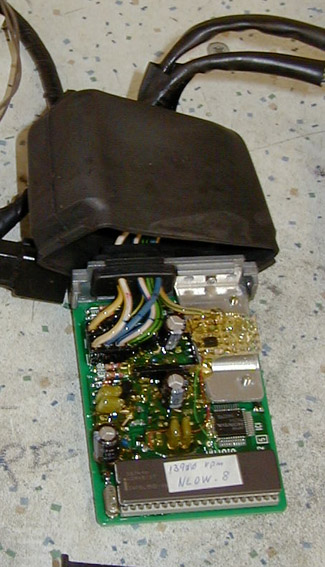

a factory CDI from Rumi

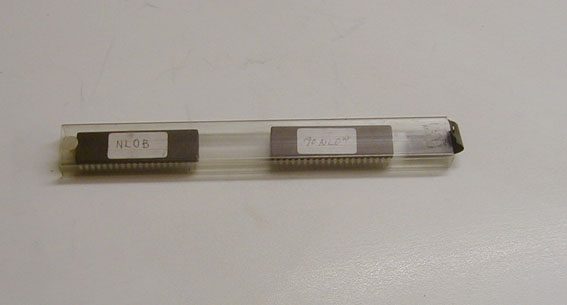

       FactoryCDI-RC30.JPG (72456 Byte)            factory Eprom's :                factory_Eproms.JPG (16592 Byte)





For Sale : CNC milled Chainducts !
