Durbahn 999 V1
August /03/2005

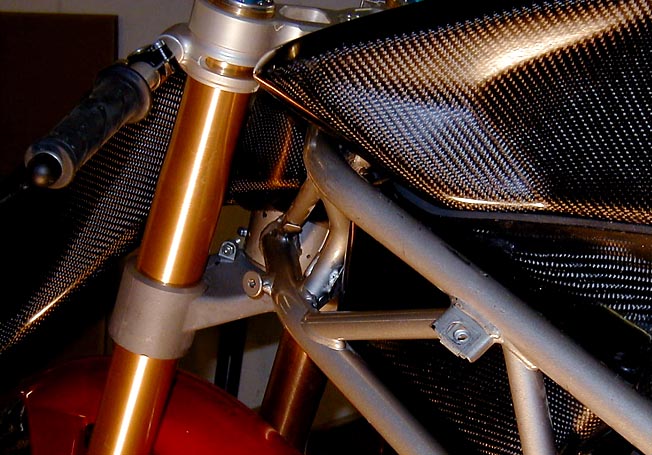

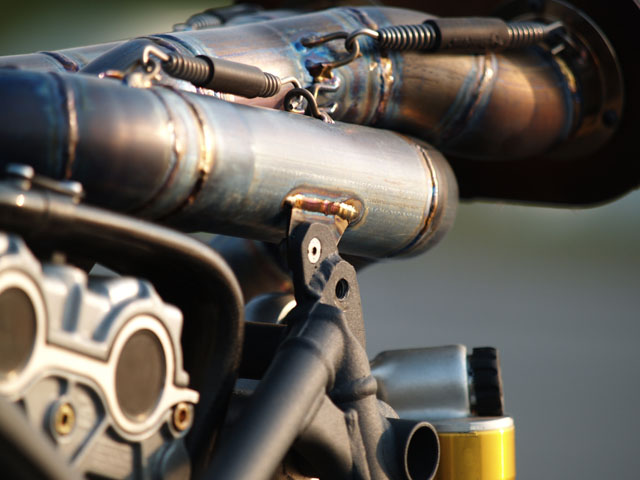

Exhaust-System
5 Weeks ago I began with Ducati 999 V(olume)2 .One of the most complicated Items of course the Titanium-header-System is (here spot-welded) here mounted :
Fueltank-dummy/Tailsection
......that's the spot where you have to
start,raw adjustment of Fueltank-dummy and Monocoque-Tailsection:
....GET RID OF STUFF YOU DO NOT NEED :
Ignition-switch bracket :
After a few drinks the rebuild nearly finished :
Motec-wire harness ,Race,cpl. 604 gr (1,33
lbs)
Will look nice at Night,Illumination of the Outlets :
Johnson inspired,thought about stuff for a new Predator-Movie
Stuff removed : ........at the end 138 gr :
On the track,looks like looking for lost Bits...but ...don't know
Even I have not seen the OEM Duc Fueltank for a while,it does not look nicer in a review .
Modelwork: checked how to design the Dummy (green marked : rad position )
That's how I began with the Fueltank . To
check all clearances I put the front on block .

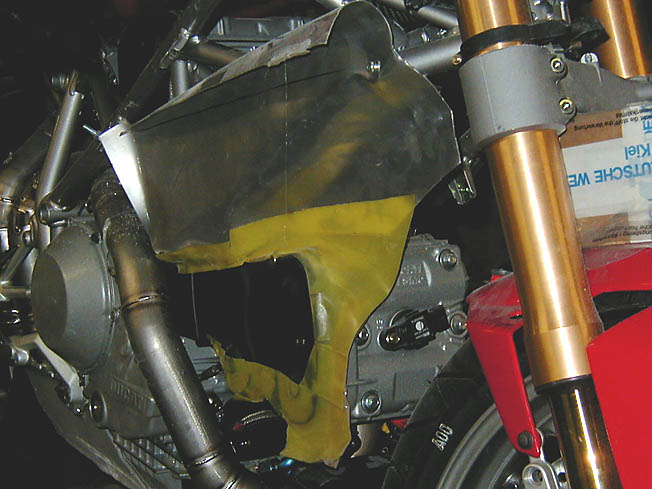

With some Aluminum sheet-metal I made the interim-model,which I filled later
with with Glassfiber from inside to get the raw contour.
.....at this Time the Canister was still located behind the sump :
Well,that was not one of the funniest
moments,when I noticed,that the front upper Section was a bit too high and too
broad,so -not thinking too much -I cutted the Section and repositioned it
Cut :
Bond:
Necessary rework of the water-duct
May 10 2005 :
lot of things happened,but it's simple too little Time to type everythin in German and English,so.... a short Note : It's done .
I've got a meeting with German Press on 17 May on the track, where I will shoot some Pictures too, which I will release here approx May 20 .
March 8 : no space left for a simple
breather-tube so I had to create a special Carbon Breather-tube .
The OEM Breather valve I've removed and exchanged by a fully open racing-gasket
which needed a bit of rework/reweld to pass the header (click thumnail below)
25.Feb. I gave up the
underswingarm-muffler Idea. One hand the muffler is extremely complicated to
manufacture ,other hand ( Ithink that was the main reason ) the headers
have been kind of "in the way
" regarding the whole Optics of the Bike .The new canister (nearly done )
will vanish inside theTailsection , and from the rear/sideview you will not
detect a can and not even Outlets of the Can
(moreless same style as the GP-Bikes ).
19.Januar 05
Mounted my CCC ,new rearsets and prepared the 999 with a pressure-sensor .Went for GP-Shift which wasn't so easy to manage,because the Alternator Cover was in the way. But ok, removed somewhat 3 mm at the section,where the cover was disturbing..........

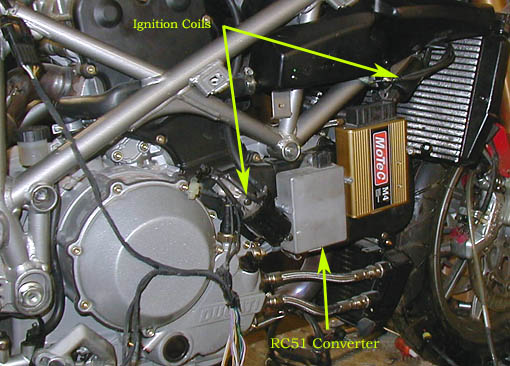

New 2nd wire harness with Motec for my Plastic....January 17.05
2004 December 21: got the frame back ,reassembled the 2nd 999 and started with the wire harness .
Incredible : I got the service book of the 999 including wire harness diagram , but 30% of the wire-colours shown in the diagram didnt match the actual wire-harness,and also the colours are even changing from female to male plug ...incredible. Well, I do not care too much about that. I have teared apart the OEM wire harness for some wires I need ,then mounted RC51 Ignition coils and the RC51 CDI -Converter,located everything testwise right side ....think around x-mas I'll bring the first tone out of the Motor .
December 2004,bought another slightly crashed 999s.The frame will be checked for straightness,and when I get back the Frame I will reassemble the Bike "originally" except the whole wire harness. The main objective why I bought the Bike : I can install the Motec into this Bike and test it on road and dyno to develope the whole Motec-Programm,which will take approx 2 months.
So this 2 months I won gives me the opportunity to finish the other one without beeing in a rush .
I simple swap the Motec from one Bike into the other one when the Map is ready.
November 13. :
received the Titanium-stuff for my Bike...axles,screws,specials . The belt leading drums are not finished yet,but I hopefully receive them in about 2 weeks .I think I'll be able to offer those Bits (well, some of them might be already available on Market.........? ) contact me: info@durbahn.de
Set of Engine-screws The Axles
....and also I received my
shock,especially built for me,180 gr less than Öhlins :
Oktober 13 : porting Job done,combustion-chamber slightly reworked....and sent a bunch of steel-Parts to a friend ,means screws, belt-leading-rolls(wheels?)+adaptors ,axles ...... to a friend,to copy them from Titan .
Oktober 09: Fuelpump-Bracket .My friend
Peter has managed to create a very small and light cap which hold's the Fuelpump
and also has a opening for the Fuelpump power-supply-plug .
The Intake/Outlet for fuel are somewhere else at the top/rear end of the Fueltank .
...food for thoughts: now the plastics are
done so I disassembled the Bike and disassembled the engine.
Have found Shiftdrum at
After some kind of machining
through a 52 years old Milling machine,which is still
reliable
and works with
high-precision .....!....
......I'm now at 659 gr ,exactly 1 gr less than a OEM RC51 shiftdrum (5hrs it took)
More soon :transmission /Race transmission weights comparison w/Pics ,Titan conrods weights comparison,primary gear weight ,Frame weight...etc.

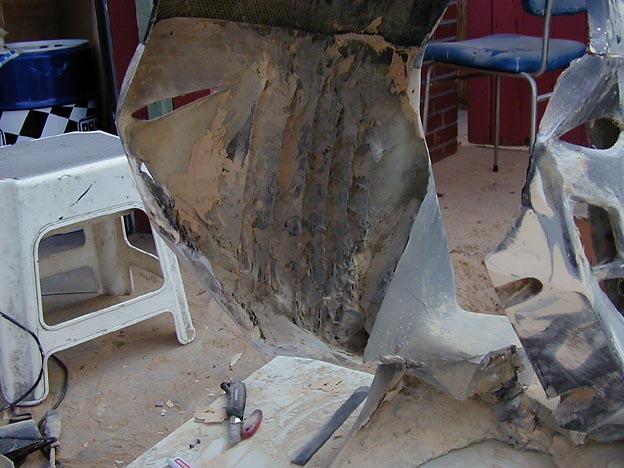

Modelwork fairing : Frame weight :
September 15th 2004 : the drudgery of modelwork moreless has found it's end - the last big Item,upper fairing model,is done . Today I will demould everything and Monday at the latest I will build the first positive from Carbon. So main parts are done:
Snorkel
Air-Connectors
Airbox
Fueltank-dummy
Tailsection (concepted as monocoque....no Subframe necessary)
Side saddled Fueltank
Fairing lower
Fairing upper
....missing,but not that big deal :Carbon fairing-stay,Carbon Instruments bracket (housing)
September 02.04: Havn't been
lazy...............................
.
August 25:
Close before !! Only 100 hrs which I still
have to spend into the fairing upper model,then I can do the mould,then I can
laminate the first Carbon fairing upper.
Means: whole plastics will be finished end of September .
Moreless my comment,when I watch the Bike now ,looks like : "now Time at all....like...there's no Time left to arrive somewhere very soon..."
August 05:
I've reshaped the l/r airducts from Snorkel to Airbox a 2nd Time to make the sealing easier.A disadvantage : you have to lower the fork-legs to mount them . But you do this only once, and if you should destroy those connectors (mounted inside the frame front end triangle) the whole Bike will be destroyed also.
I also reshape the Snorkel at present for more Air-Intake cross Section,so a new mould again..
And: received the tool (a copper bell )
today to be able to re-groove the race transmission axle.
It's because my clutch-assy (basket + hub) runs 20 mm more inside Engine I also
have to reprofile the grooving for the hub on the race transmission-axle 20 mm
more towards crankcase.
July 31:
I :Both halfs of the Fueltank are out of the mould ,built from Carbon-Kevlar . The scale said somewhat 1.5kg (3.3 lbs) for approx 15 Liters . But including Filler and mounting Hardware for Fuelpump it'll be ~ 1.9 kg in the end.I can live with that value.
II :I've built the 2nd Tailsection
(monocoque,so tailsection and Subframe in one) now in Carbon-sight with a few
less layers carbon, which brought me from 1377gr for the first one down to
1164 gr.
III: A basic weights sum up
390 gr or 0.86 lbs Carbon-Airbox
(w/Dummy approx 32 Liters Airbox-Volume)
1260 gr or 2.78 lbs Carbon Monocoque Tailsection incl. Seatpad
600 gr or 1.32 lbs Carbon Fueltank-dummy
1900 gr or 4.19 lbs Carbon/Kevlar Fueltank
2200 gr or 4.85 lbs calculated for Carbon Fairing incl. windshield,fairing-stay
and headlight
250 gr or 0.55 lbs Carbon Snorkel-Setup incl.Airducts from Snorkel into
Airbox
-----------------------------------------------------------------------------------------------
6600 gr or 14.56 lbs total
...........re-enact,what I have then :the cpl. plastics including an Airbox,Snorkel and Fueltank for a value of weight ,which probably has got the OEM Fueltank only !
July 1. 2004 :back from the track with my
RC and no major problems to solve I found the Time to start again with the Duc.
So at present the model of the Airbox is done ,so we only have to fab the mould
and the first positive from Carbon.Of course the Airbox will be a 2-pcs
Assy,otherwise you wouldn't be able to bring it in .
Latest news 0: By fortune I'm connected now ! With the
guy who has developed the QAT Fork...
which means ,he'll built a special rearshock handmade for my Duc ! And that
leads into: I finally can get rid of ALL the Öhlins stuff which is on the
Duc,so Öhlins-Fork cpl.,steering damper and shock are left over and
available.As I've mentioned somewhere else before ,Öhlins is no bad stuff,it's
working fine,but of course it's mass-production,so that's why it doesn't fit for
a Project like I have here with the 999
Latest News I : the Air-Intake is done.
Click here to have a look at those Pics
Latest News II : I received the Carbon Valve-Cover,shiny gloss and very
light(128 gr ,0.28 lbs), I think half of the Ducati Corse Mag Equivalent ,each
342 € .I'm not interested in to copy those,each manufacturer should have his
own field of playing . If you're interested in a Set,contact me : info@durbahn.de
Latest News III :I found the Time to put some Bits on the gauge.

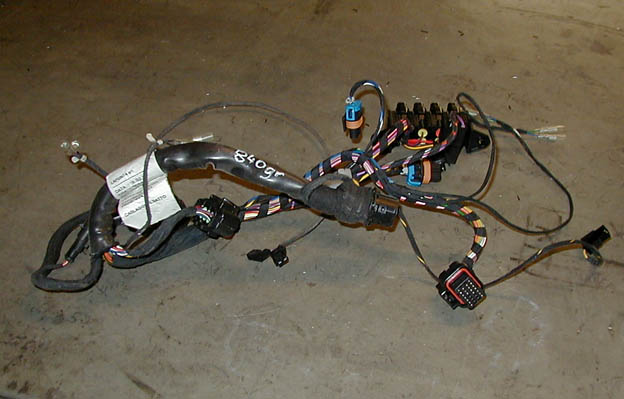

First is : the front section wire harness ...............hehe,840gr (1.85lbs) . As far as I remember it,my whole RC51 wire harness is less than half of only that front Section of the OEM Duc
And next: the headlight-housing incl.
headlights (WITHOUT the
mirror-stays)
...you wanna guess ?
Better you don't . It's 3.4 kg (9.93 lbs) . As far a I know for half of
that I'd be able to realize a cpl. fairing incl. headlights .Which Theme leads
back to my .........
...........new Snorkel,which I've also on the scale.It's cpl.incl. the 2 inside
frame ducts 330 gr (0.72 lbs). So,and now add the OEM Duc-Airducts onto the
3.4kg mentioned above ! I guess this OEM Setup ends at 5kg !
This Text will stay a while here on the first page,moreless to admonish myself whenever I update this web to force a very special project .
It is: an Alternator + Rectifier
That you can re-enact,why I'm so euphorcic ,the Alternator dimensions are: 2" x 2" ALL IN ALL !!! ....the special thing is,that it's
running with Neodym-magnets,which give up above 100°C . So,if this setup works
reliable,then I'll go addittional for a electrical waterpump,which
means,then I can cut or machine the whole Alternator-cover nearly down
tothe ground,then I can cut the crankshaft ... and so on. From what I
assume: the weight I shave by cutting the crank only is close to be the
same as the weight of my Alternator ! |
Feb.19.04:
I have not been lazy even I have not updated this Site for about 14 days.I think
I've have spend 50 hrs into the Air-Intake (Snorkel),but yesterday night I put
it under filler,so moreless -from point of view of modelwork-it is done .Only
the fine-grinding Job today and we can start with the mould.
The decission was made 10 days ago,when I started,I'll go for one Intake hole
assymmetrical left side,not really shaped into fairing,even if it'll look like
in the End.
It'll look funny and it requires a clear window to see the Frame-Id,because the Snorkel is sealing and covering the whole steering-stem.From what I can estimate now it'll be around 380 gr (0.83 lbs).

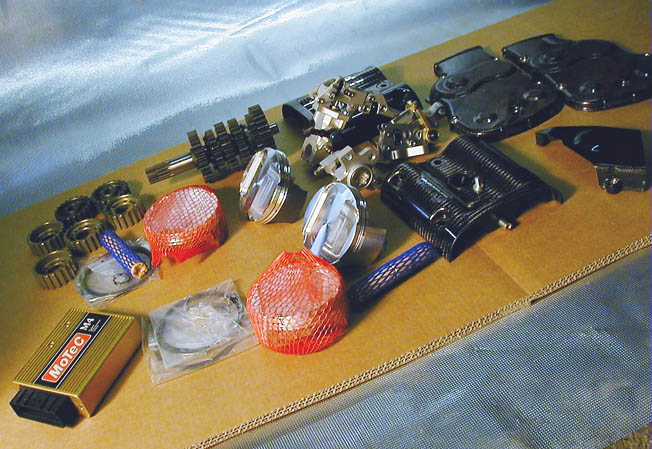

.........and some other stuff is on the way:
1:The clutch is at the machinist,and as far as I can foresee i'm able to post pics and weight here in about weeks.
2:I received a FRP Ducati-Fueltank (only the upper Section),which will be the Airbox cover,or Fueltank-dummy.... .At present it's not sure if I leave the design 100% or if I will reshape it slightly but one thing I know: It's 4 cm too long ,or 4cm to far mounted towards the tail. I've had a strange feeling,when I sat on the Bike,before I dissasembled it,somehow I've been remembered my old FZR 1000.
3:race-transmission I hopefully will receive within 2 weeks,somehow urgent,because I've to machine one axle for my clutch-Setup
4:Mag-cover clutch-side is here,which has to be modified also .
5: Carbon-valve-covers I hopefully will receive soon. I thought about to fab them myself ,but they're at 350€ each,and I know ,what for a work that is,so I thought it's ok to order them . 117 gr each (0,25 lbs)

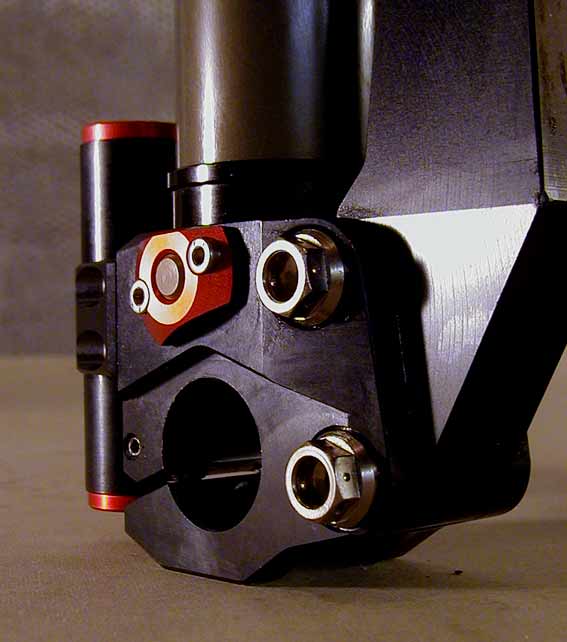

I've
been able to track down another QAT Fork incl. QAT triple clamps with
adjustable Offset ,but I had to buy a Bike to get the Fork (a
race-Kawasaki ) !!! So ,one QAT at the RC30,one at the RC51 and
now also one for the Duc . Ok,still a bit work to
modify the Internals for correct lenght,but that's done soon. Also pics
soon. If you like to see how a fork with NO Springs looks like : www.honda-rc51.de/front_fork.htm
. That's a main precondition to reach something like 360 lbs full fuel
incl. Starter ,because the Fork is 6-8 lbs lighter,then every other Fork
on Market ! And built in German armaments Industry,they know something
reg. tubes.
NEW 999s Öhlins-Fork for Sale,incl. triple-clamps/Fender/Clip-ons : info@durbahn.de |
Sometimes good to disassemble something-even it's new,have a look.

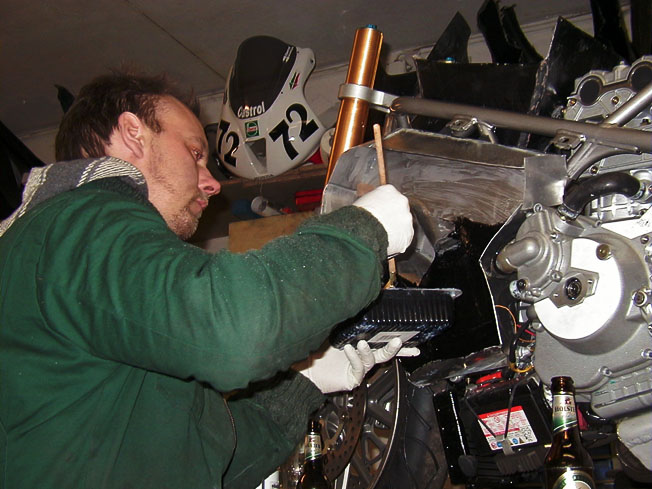

Doing something strange
