Well, I need the space at the front cylinder for my Project-and there the OEM Ducati Waterduct is hidden behind Battery,so I 1:cutted out the section I needed for front cylinder (later I'll make some drafts to machine them

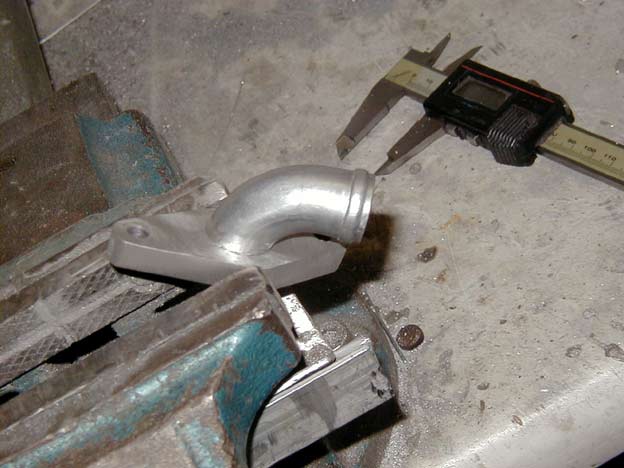

2:fixed some pre-bended Aluminum tube on it,and welded it         Water duct rebuilt 2.jpg (41227 Byte)



3:Then -because I need the space -the same with the waterpump-outlet,which was hard to remove :
                               Water duct rebuilt 3.jpg (43689 Byte)

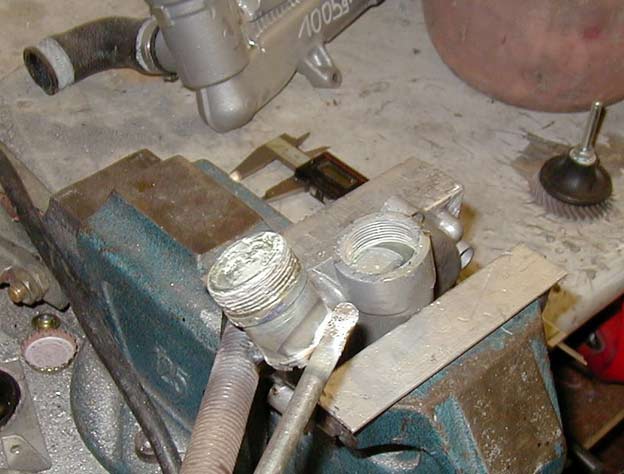

4:.............because the Loctited thread :.......................Water duct rebuilt 4.jpg (45386 Byte)

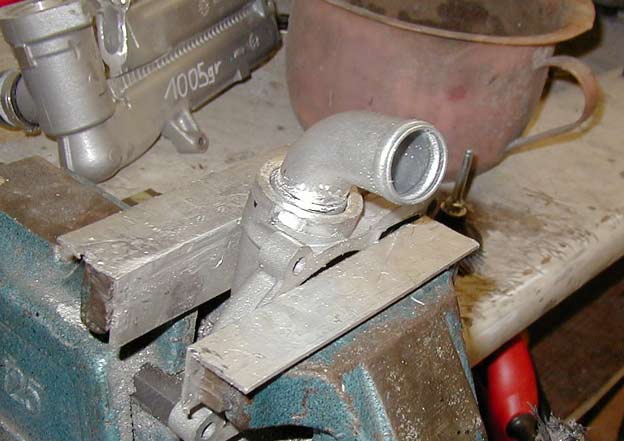

5:  Water duct rebuilt 5.jpg (43898 Byte)  but then I've been able to go for same procedure

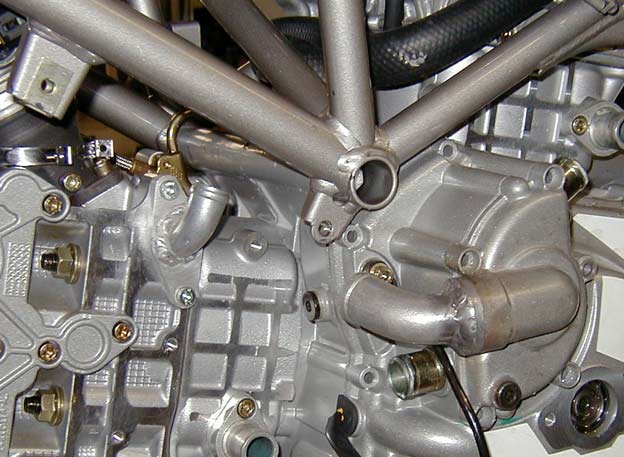

6: so here the are , both welded : Water duct rebuilt 6.jpg (55311 Byte)

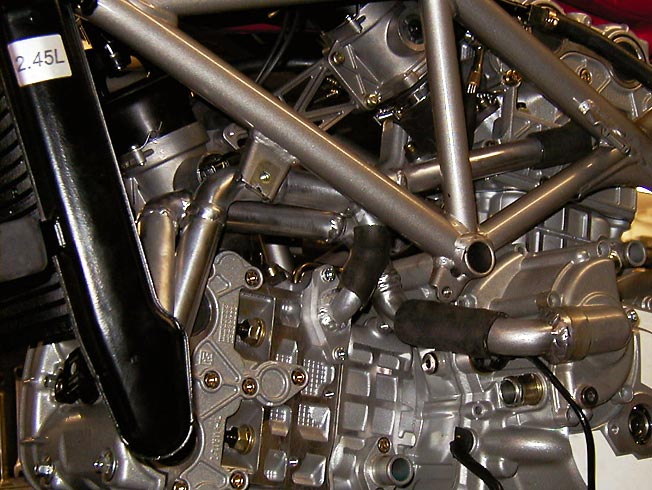

7: so,and then a spend nearly a full day to solve the water-ducting as I it's probably required for my rebuilt .........................

400 gr (0.88lbs) instead of 1100gr (2.42 lbs)
