Desmo rebuild 2008
July to December 2008
December 22/2008
Cleared up the Situation a bit.
Note: this is the Motec M800 wiring only.
The ADL2 wiring will be it's own.
December 19/2008
Suggestion Motec M800 Sensor Input Configuration.
Configuration meanwhile has changed, used some of the spare inputs to connect them with ADL2

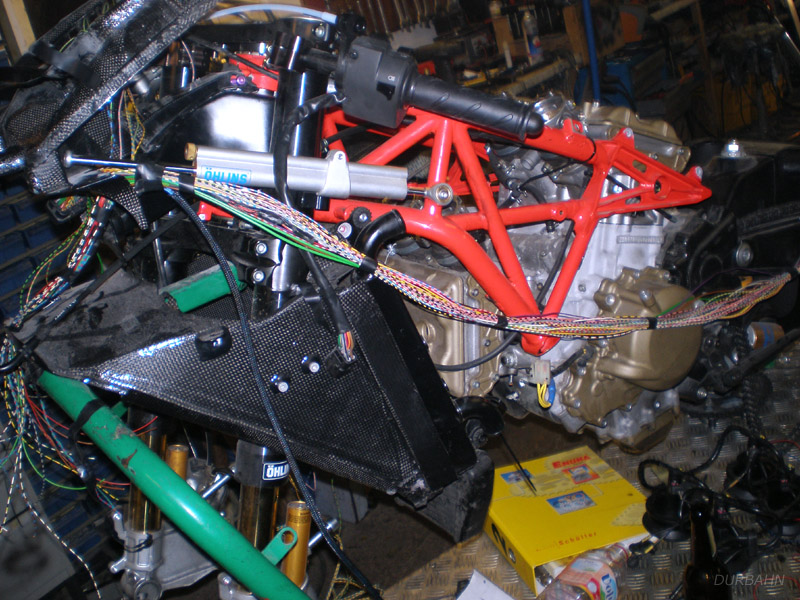

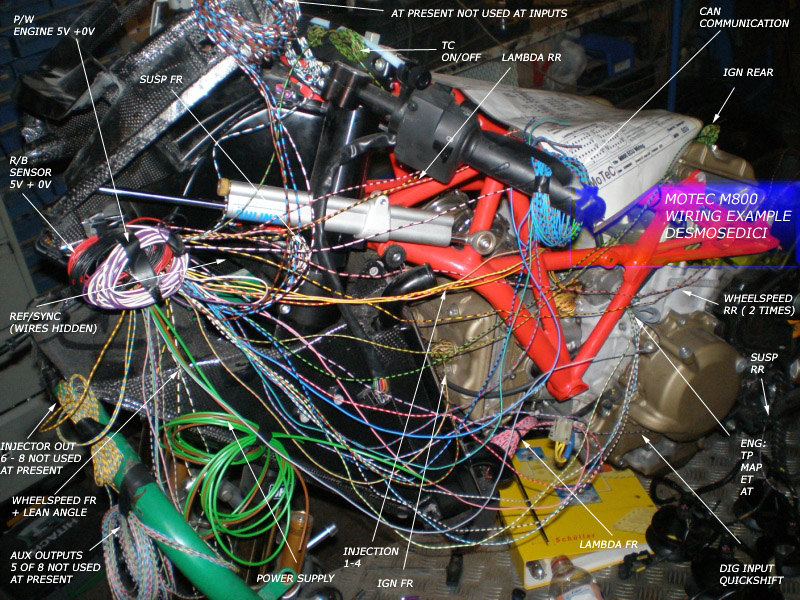

Sorted it out so far so good, wires start to look like a harness:
December 18/2008

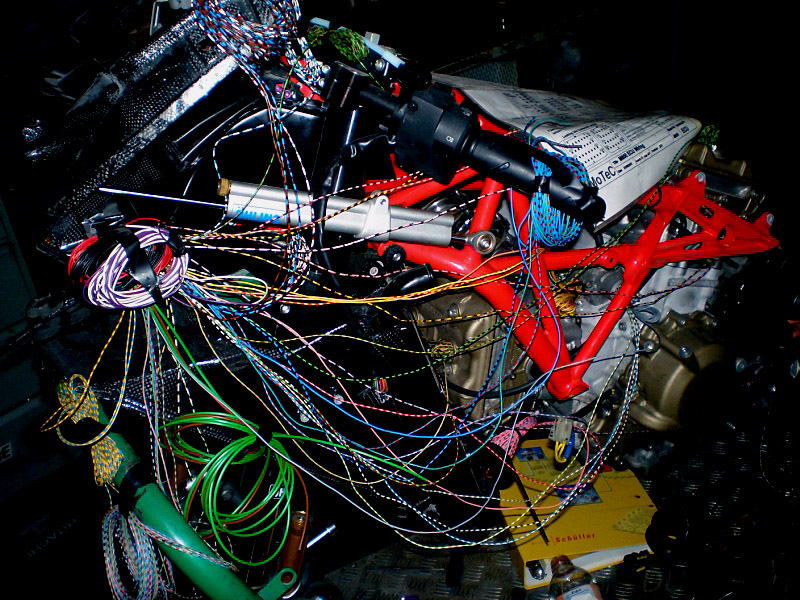

Started to prepare Wires for Motec M800
December 03/2008

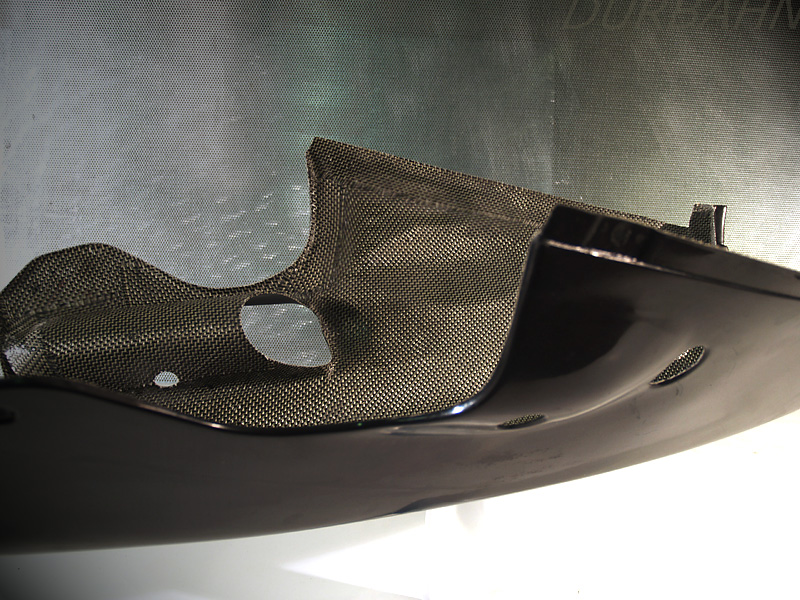

Desmolower Carbon/Kevlar
Perfect for track and road.
High Dynamical Strength.
November 27/2008, Desmo fairing lower
available now in Carbon Kevlar
Just have to make some Pictures, then it'll appear inside my Shop.
November 19/2008:
In Conjunction with my new hidden rearbrake it is possible to build a MAX light Wheel for the Desmo, incl. OEM Speed-reading
This Wheel will have a weight of 5,8 kg in AL, and 4.6kg in Magnesium.
The OEM Desmo wheel weight is 8.3 kg
This Wheel will be special, and manufactured especially to match my new rearbrake, to reduce unsprung weight and rotational Inertia down to Minimum.
All the necessary Drafts and Sketches are done
Please do not hesitate to contact me in case you are interested in this Setup, as the delivery-Time for Magnesium Wheels is roughly 5 Months and ~ 2 Months for Aluminum.
November 19/2008:

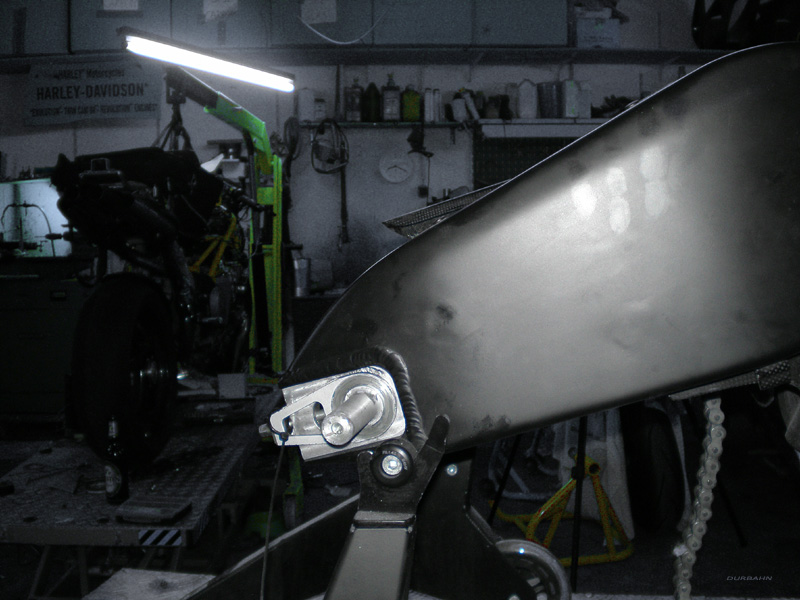

The first Prototype of a trick light invisible Desmo-rearbrake is done.
In the End 2 Types of rear brakes will be done :
For OEM 240mm Disc
For max light 220mm Disc
November 17/2008:
The Desmo-Front is in the Makes, the mold should be done ~24. Nov.
November 10/2008:

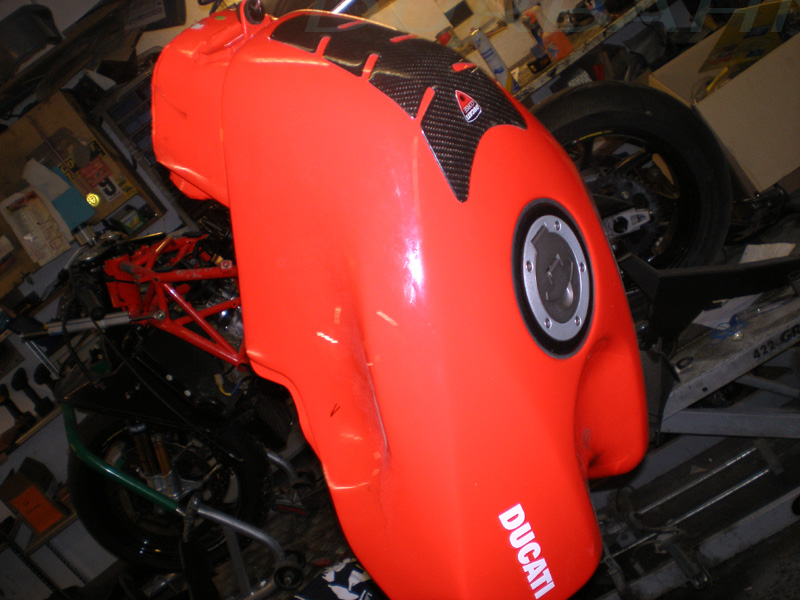

The Desmo Aluminum Fueltank is at 5 kg without Fuelpump.
Considering the weight of average modern Sportsbikes Fuel tanks weight, which are made from mild Steel, which is 300% more Density of Material, and considered they are at ~ 5.5 kg in Steel with a Capacity of 18 Liters.... the Desmo Tank is damn heavy, way more than I expected.
I will start now to build a mold of the Fueltank, only upper Section , to be able to check out the Space I have for a different Airbox/Fueltank Setup.
Quite clear the OEM Desmo Battery Location above rear Cylinder will vanish/ be changed.
October 23/2008
Excerpt of the drawing of the 2nd Desmo CCC.
We're at Version 3 at present.
I think until everything is ready to be CNC machined we will be at Version ~ 7.
October 18/2008
D16 Carbon Fairing Lower
October 17/2008
Everything done with Epoxy-Resin, I do NOT FAB ANY OF MY PLASTICS WITH CHEAP POLYESTER.

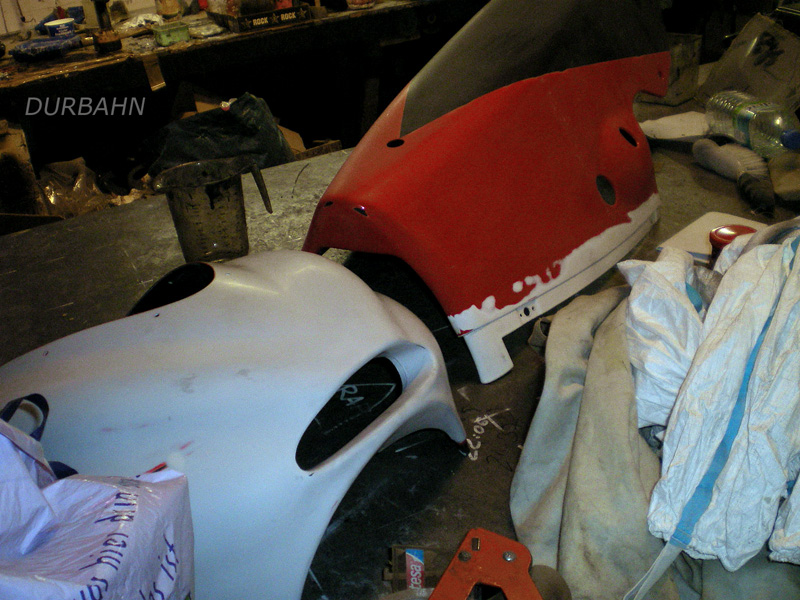

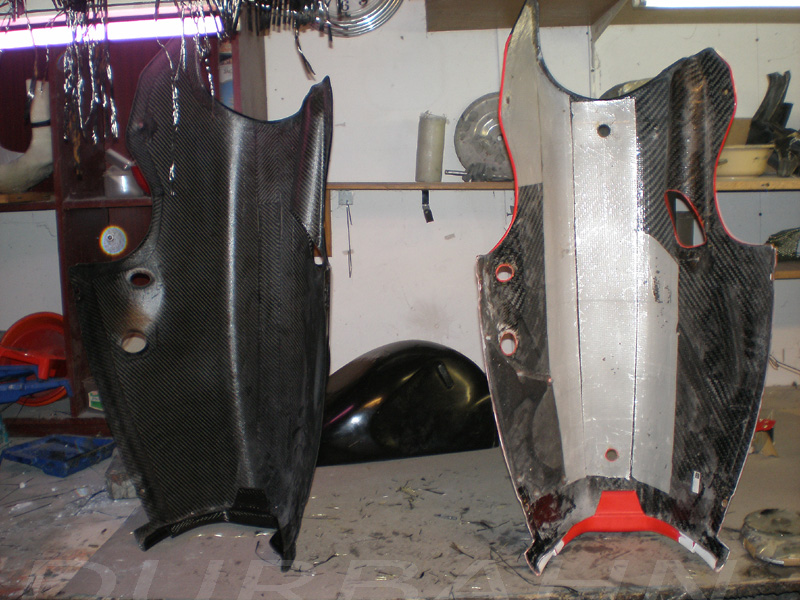

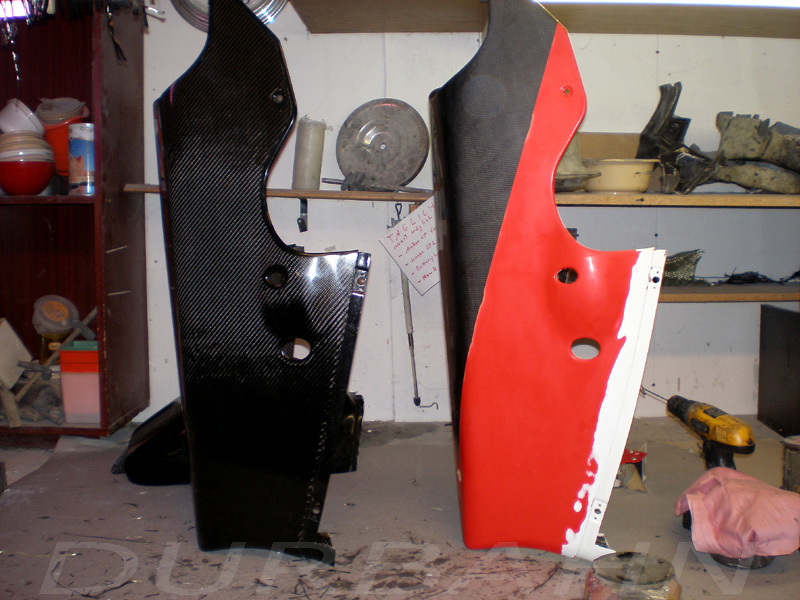

First Desmo lower Fairing is done, out of the mould , here inside Comparison, OEM and mine :
Weight: only 54% compared to OEM.
The Versions in Carbon-Kevlar and Glassfiber will follow.
The upper fairing mould is in the makes.
The lower Fairing (CARBON - CARBON/KEVLAR - GLASS) will appear in my Shop once I have Time to make nice .. Photostudio Pictures.
October 16/2008

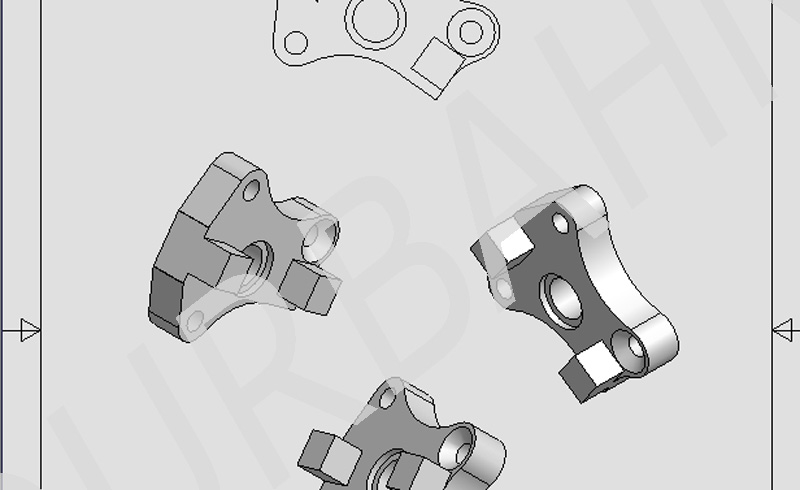

Raw Baseplate-Drawing for my CCC/Desmo is done.
October 15/2008, scattered Thoughts:
Our Watchdog

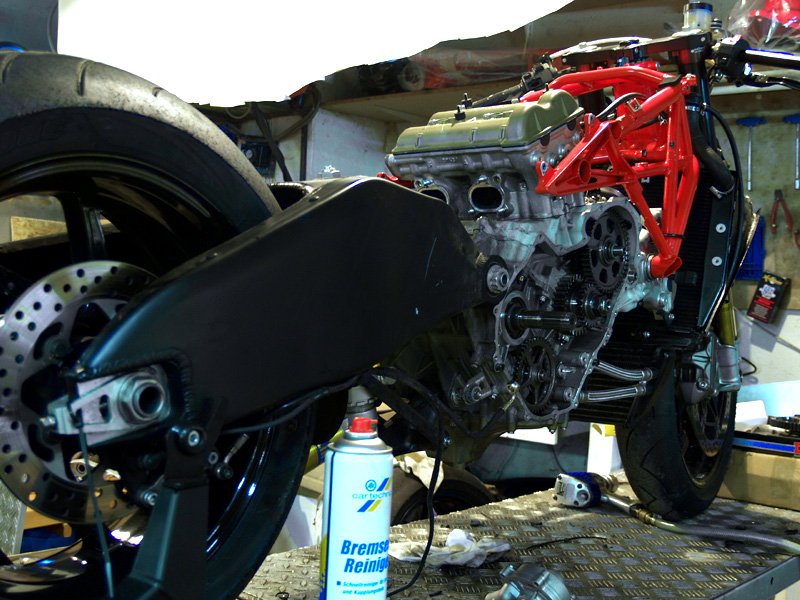

Not much left of the Desmo.
Not a lot of Bits will remain.
Rear Wheel is too heavy, front seems close to be ok weight wise.
Some OEM Bits I will drop at my machinist to build them from Titanium or AL.
I will offer those Bits then inside my Shop - once they're done
October 14/2008 :Update , CCC's and stuff
- Definitely 2 different Cable clutches will be available for the Desmo soon
- New rearsets probably too ( if then ~ November/December)
October 11/2008 , simplex sigillum veri :
Well, I have already a Base-Plate for my CCC in the Makes, so my continuously declutch-Stroke adjustable CCC will be available in a month.
Maybe then in the end I will have 2 CCC's available for the Desmo, because I like the Style and the simplicity of the CCC which I have developed for my own 1098.
For all those who never had a smart made Cable Clutch, it's a tremendous good feel !

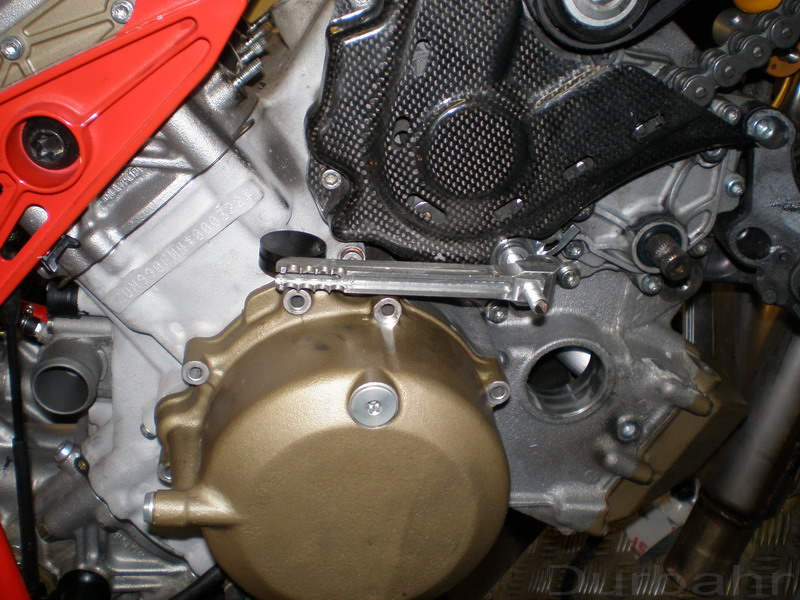

To give a rough Idea :
October 6/2008 , Scattered News:
The OEM Desmo Alternator is 680 gr. (1.5 lbs)

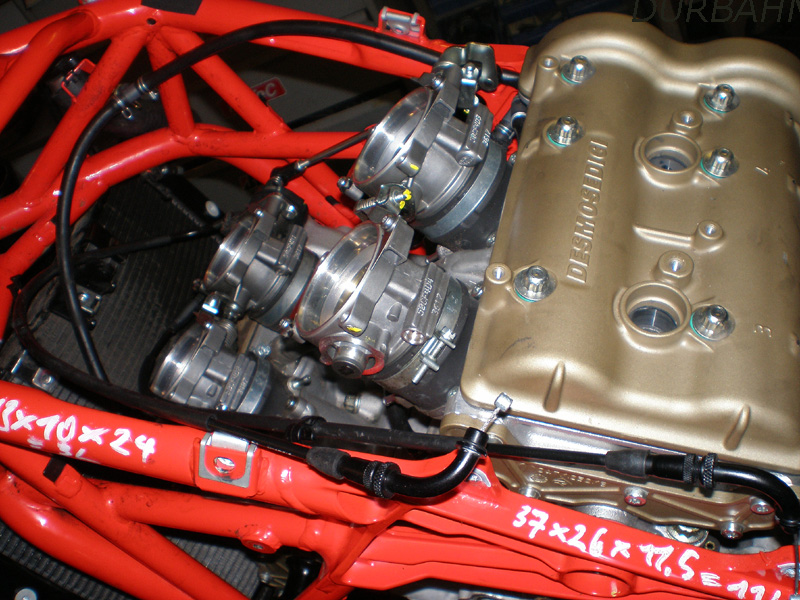

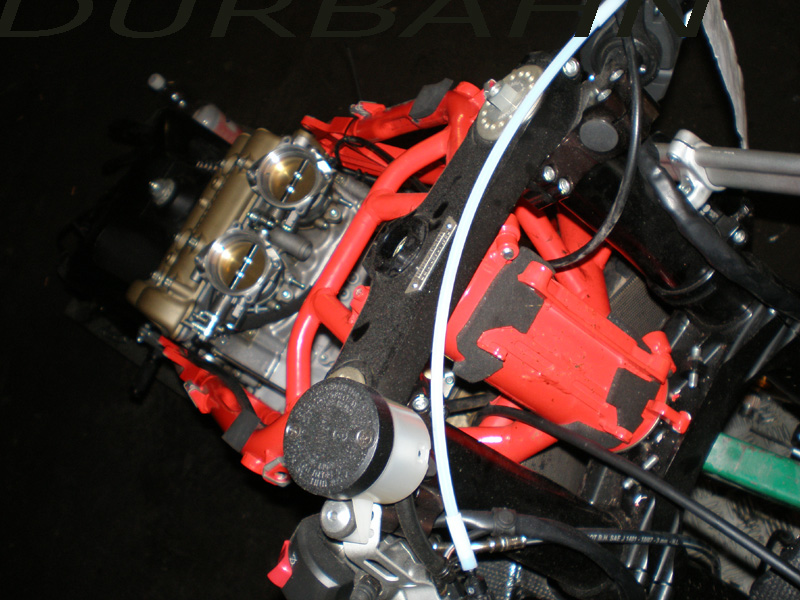

View from top onto Engine ,Throttle Bodies mounted, Calculations for a new Fueltank

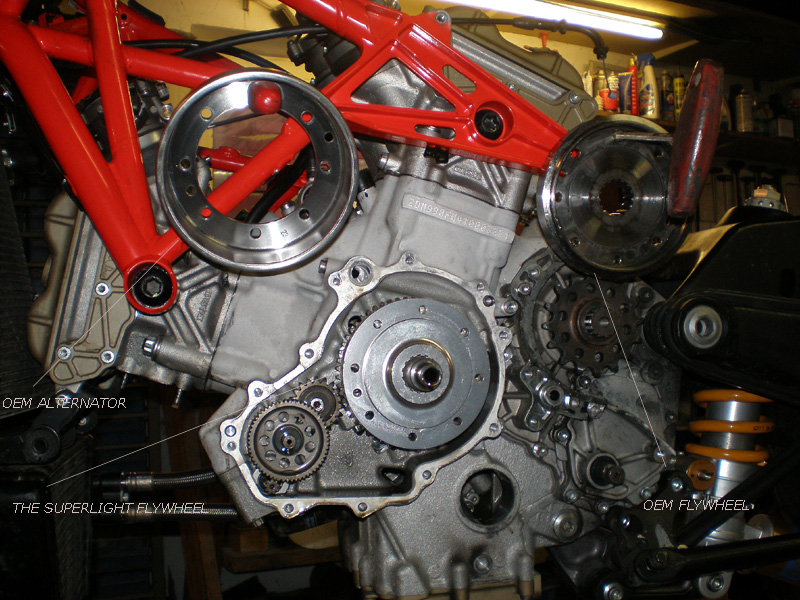

So if you mount the light Flywheel it'll be weight wise as if you'd have removed the Alternator

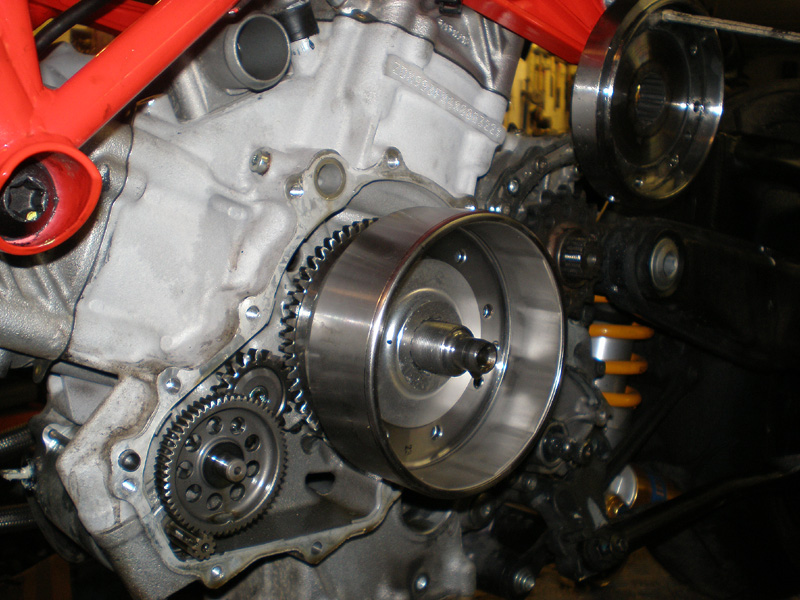

Alternator mounted:
Scattered Impressions:
The Desmo Race ECU is not really a Race ECU, it looks more like a simple enriched base Mapping with a +x% overall Injection Trim ( have read out the D16 Race-ECU)
The D16 Frame looks from the way it's build as if it has been conceived during the 999 Era...do not light to me.
October 5/2008 :

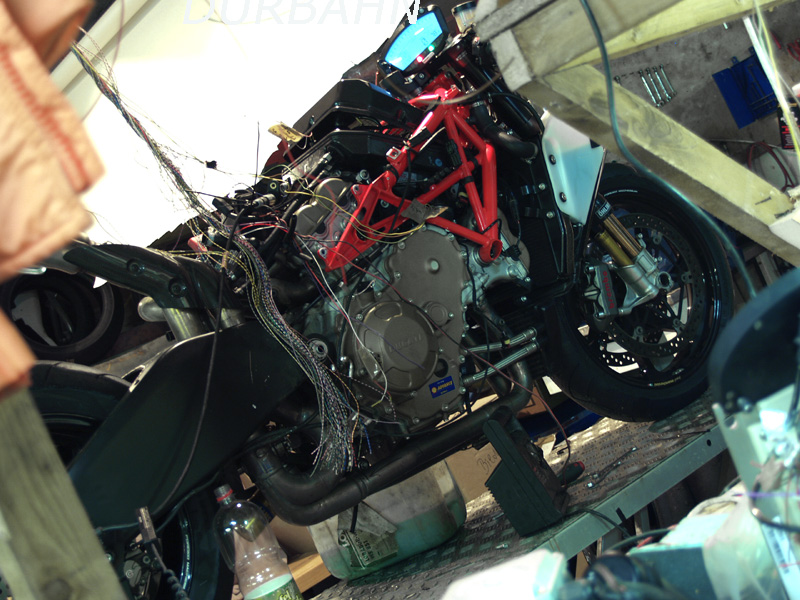

The Desmo starts to look like a Racebike.
Have had a few Bits on the Scale today:
Wire Harness main, incl. ECU 2.2 kg ( 4.85 lbs)
OEM headers incl. race-Muffler 7.6 kg (16.77 lbs)
Waterpump incl. lower AL-Waterduct Section 1kg ( 2.2 lbs )
October 4/2008 :

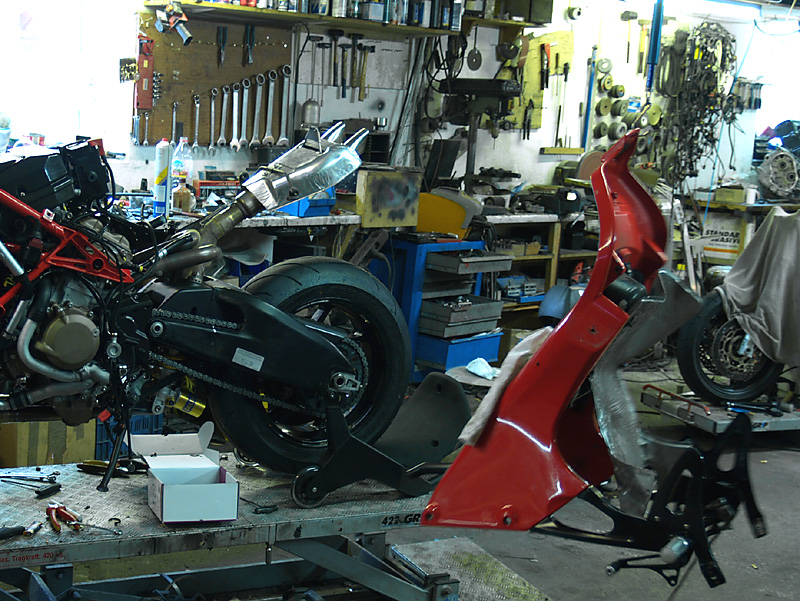

Monocoque weight 5kg ( 11lbs) ,including Rearsets, breather Chamber
Race ECU Readout
One Thought after having a short look:
The Water-circuitry can be improved:
- By different routing, containing less Water- so therefore less weight
- new Waterpump, new Location of Waterpump
And:
this Desmo is not mine, it's from my Buddy, but thanks God I've got free rain to do what I want.
October 2/2008
4 weeks from now on on it'll be moreless just thinking.
About a lightweight Desmo Concept.
In-between I will read out the Desmo Race-ECU, to be able feed the Motec M800 with some raw Data.
First Data recordings then of A/F Values with/from the Motec ADL2 I'll be able to post ~ June 2009
Generally I can not describe very detailed now how I will lower the weight of the D16 ( which in the End will be even below the weight of the GP Bike ) but of course, once the Bits are done, I will display them here.
One thing said, we'll fab our own full Ti Exhaust System.
September 17/2008
Some better Pics of the Carbon/Kevlar Panel.
Inside :
I never use a big layer, which is covering the whole mould in one, even that would be cheaper for me, because that means less work and less blend. The Reason is, that just one layer Carbon Kevlar ( or Glass ) is not enough but 2 Layers is too heavy.
So 5 years ago I decided to go for the best way in-between regarding the weight, even there's more blend for me:
I use rectangular cut Carbon Kevlar which has an overlay with each neighbor, so where 4 layers meet there's a central point of stability, and double layer at the seam where 2 layers are next to each other.
So this way I've got a Mesh of 2-4 Layers of Carbon/Kevlar at the connecting Points, kinda like Skyscrapers are build inside.
September 08/2008

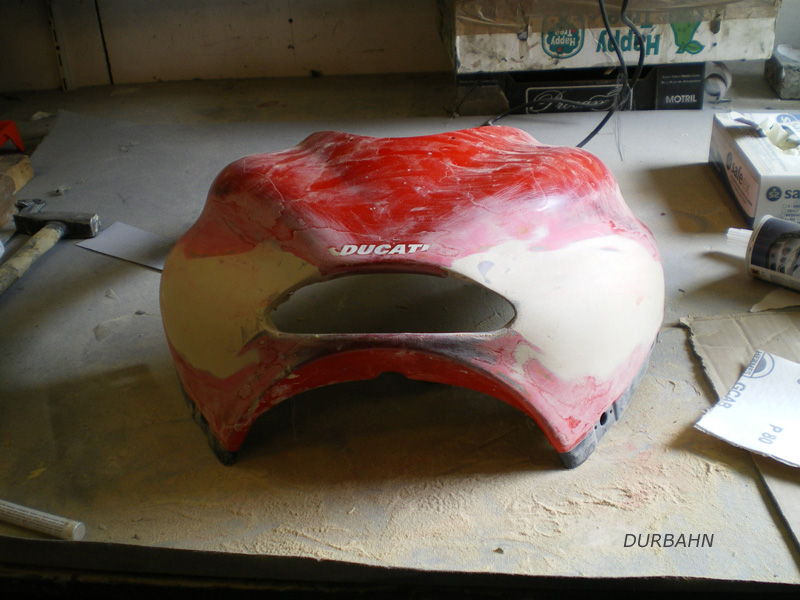

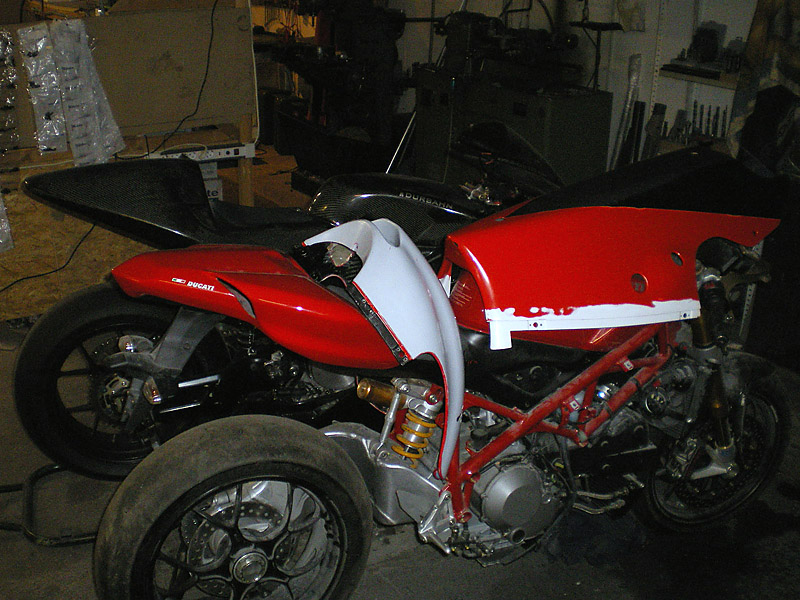

Desmofront and lower fairing OEM Parts polished and prepared to build the mold
I do have 2 trackdays next 11 days, but from 20 September on I will force the Production of Desmosedici Parts
September 03/2008

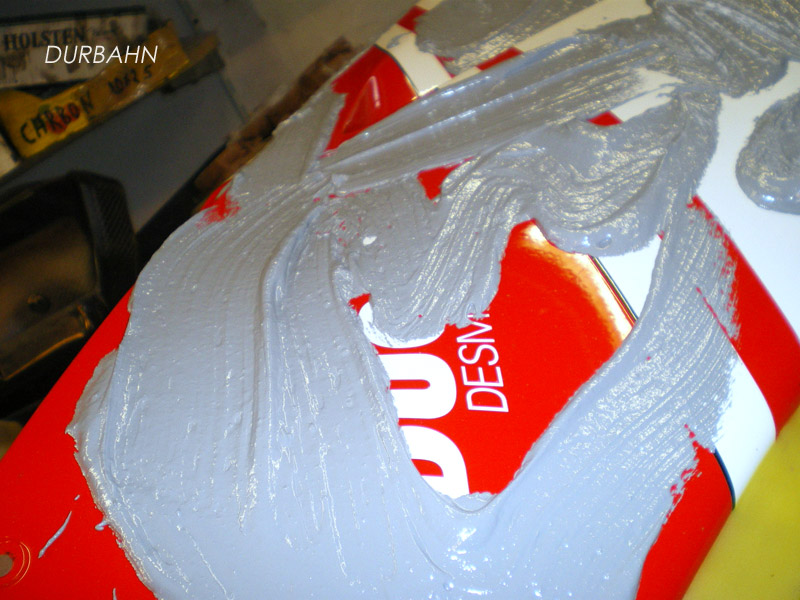

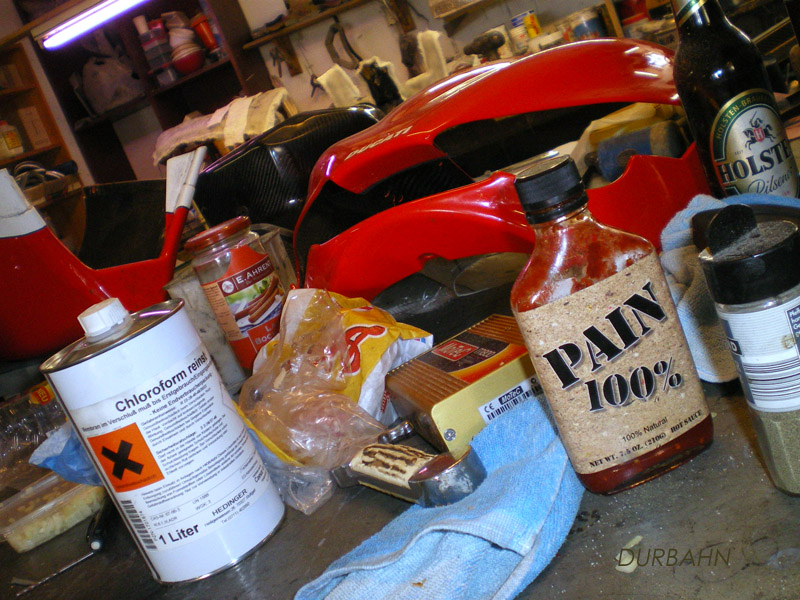

Desmofront and lower fairing OEM Parts sanded and prepared to build the mold.

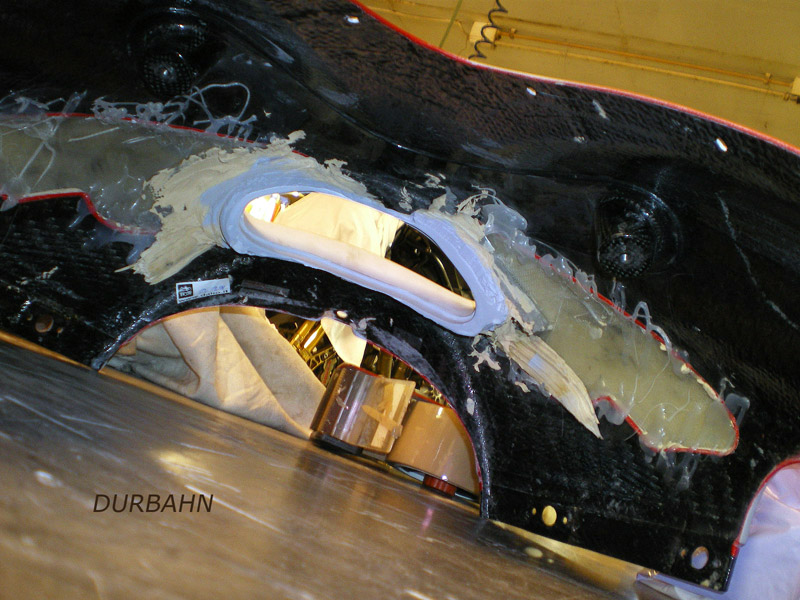

Inside upper
August 22/2008:
Desmofront in the Makes.
The Race Front will fit 100% , at less weight than the OEM Stuff.
August 21/2008:
The Plan for next 3 Weeks:
- I will fab the first Fairing-Stay/ Air-Intake Unit
- rework of OEM fairing upper into a race unit ( so no light cutouts )
- will start with the mould for fairing lower
Long Term Strategy, my Intention is to have the Stuff available in January:
- Superlight D16 Monocoque
- new rearsets
- superlight Engine-Internals
- new Fueltank
- new Airbox
- new Battery /Location
- Motec M800 Setup ( with Traction-Control and all advanced/ sophisticated Features ), and wire Harness
August 16/2008:
The Desmosedici Fairing Side Panels are available , check the Shop .
Build with EPOXY-RESIN, flexible and durable,
+ Glassfiber
or Carbon/Kevlar ( my strong recommendation for track-use )
or Carbon
...all Versions do have less weight than OEM D16 Side Panels
No Copy from a Copy.
100% Fitment.
August 6/2008:
Fairing Side Panels are done.
In 5 days I'll be able to check their final Quality.
If they turn out good they'll be in my Shop in 10 Days.
Next then will be the Intake/Fairing Stay
August 3/2008:

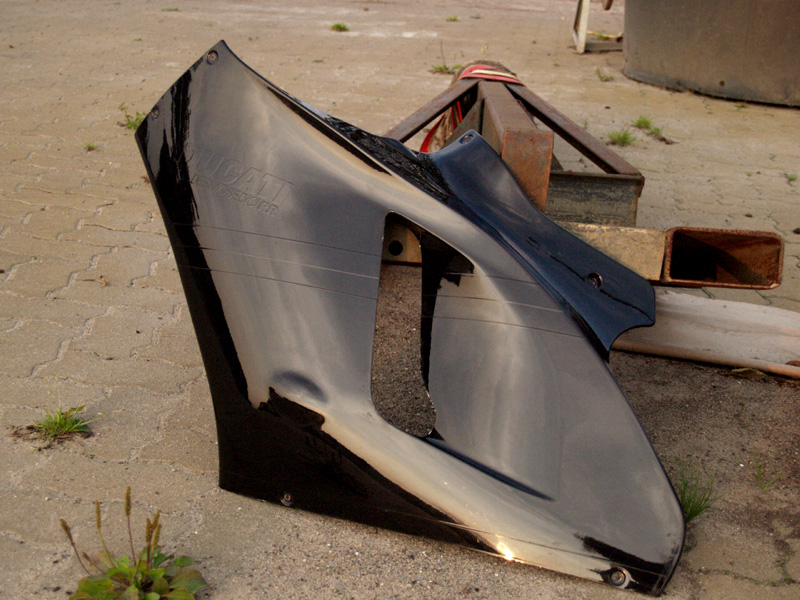

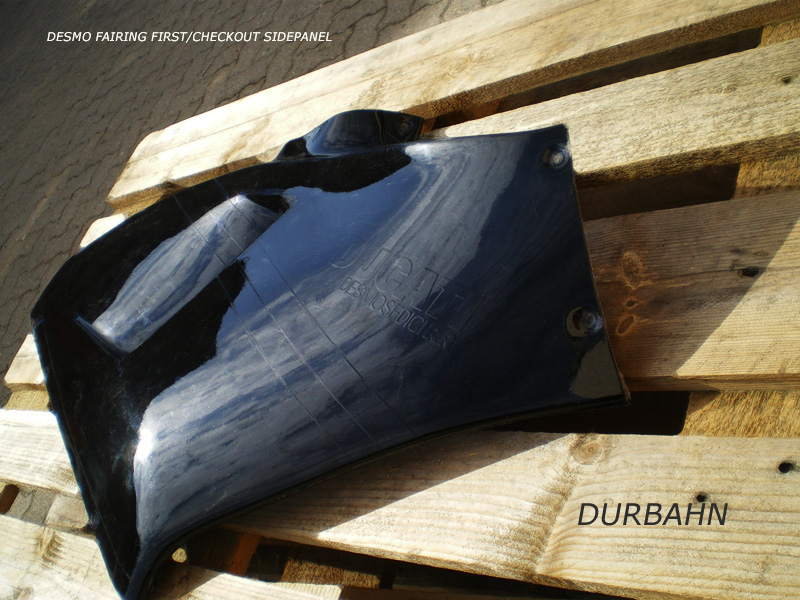

Pics of the Flywheel tomorrow, here first Pic of a Prototype ( kinda checkout how's the best way to build it) of the Desmo side Panel. Made from Glass fiber, but still a weight saving of 170 gr..
Even the mold has been made from Epoxy-Resin, so there is no shrink and therefore no problems with accuracy of fit.
Don't wanna paint it, so what color for gel coat you'd like.....?
August 2/2008:
Superlight Flywheel available for the Desmo... Pics tomorrow...or check out the Shop
August 1/2008:
One of the Performance Parts, which is a MUST for every serious Race Bike.

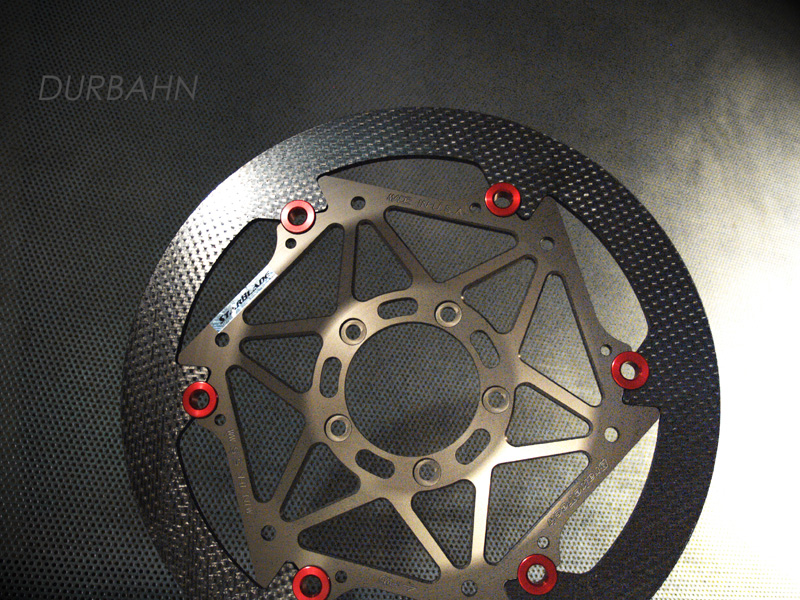

CMC ( Carbon Ceramic ) Brakediscs.
Suitable for every condition - from the start, does not matter:
- cold
- wet
...hot or dry
Not just like Carbon Carbon Brakedisc which need Temperature to be able to offer stopping Power, these Brakediscs work in every Condition from the first Meters on Road . Available in my Shop from Monday on.
July 31/2008
Carbon Ceramic Brakediscs on Stock !!
The Maximum for the Desmo.
Pictures available tomorrow !
July 20/2008
Side Panels survived the demolding ...
July 18/2008
The fairing side Panels are still in the mold, but can be demolded in a couple of days.
So available in ~ 4 weeks.
July 16/2008
Was good :
I still have to fab a combined Fairing /Dashboard-stay for my own 1098-Project..... and I'm in a rush. So I thought I just use the Mold to build a Prototype of the Desmo-Stay from Glass, which I can rework then to meet my requirements.
July 14/2008
Desmosedici Fairing-Stay, survived demolding.
Right hand the mold.....
July 7/2008
Desmosedici Fairing-Stay, in the makes....
July 5/2008
Next to fab the Desmo fairing front (racing) + Lower fairing
Juli 3/2008
Started with the mold of the Desmosedici Fairing side Panels
Juli 2/2008

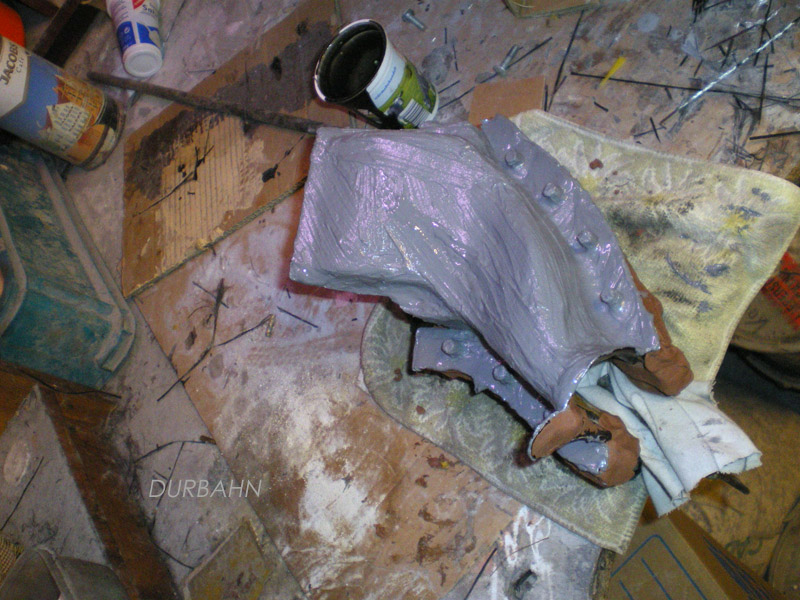

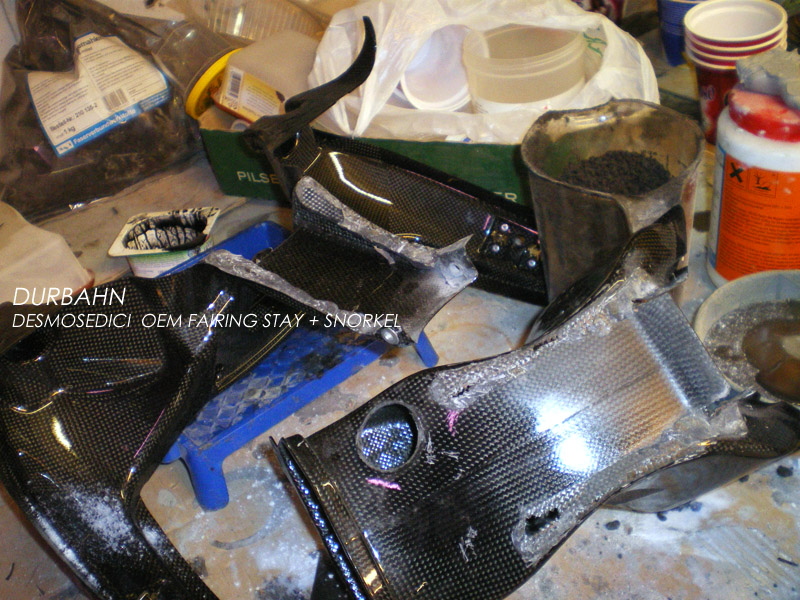

The Desmo fairing Stay+ Snorkel, cut into 2 half's to be able to make a mold of that pieces.
No way around to damage either the upper or the lower Part.
But in the end ( not as OEM) those 2 Parts will be connected via screws, not bonded, so in case of a crash you are able to exchange the damaged Snorkel OR the Stay.
July 1/2008
Starting from now, but with full intensity ~ October, we will rebuild a Desmosedici.
Intended Specifications at the end :
- 40 kg's less ( approx 90 lbs)
- Motec M800 with:
Traction Control , curve sensitive via GPS
Launch Control
full Engine Management
gear dependant Quickshifter
full Datarecording: Lambda, TC, GPS, Suspension, G-Forces, Pressures Fuel and Brake, Tire-Temps and so on.
- new designed rearsets (mounting method)
- new Fueltank with new designed Airbox, with OEM Fueltank Shape just as a cover
- new lower fairing will be available with or without ( means straight flat Shape for track use only ) Kickstand-cutout
- superlight rearbrake
- Carbon/Ceramic Brakediscs
- Offset adjustable Triples
- new linkage for shock
- Titanium Axles and Bolts
... and so on, that's just the List from today.
